INA

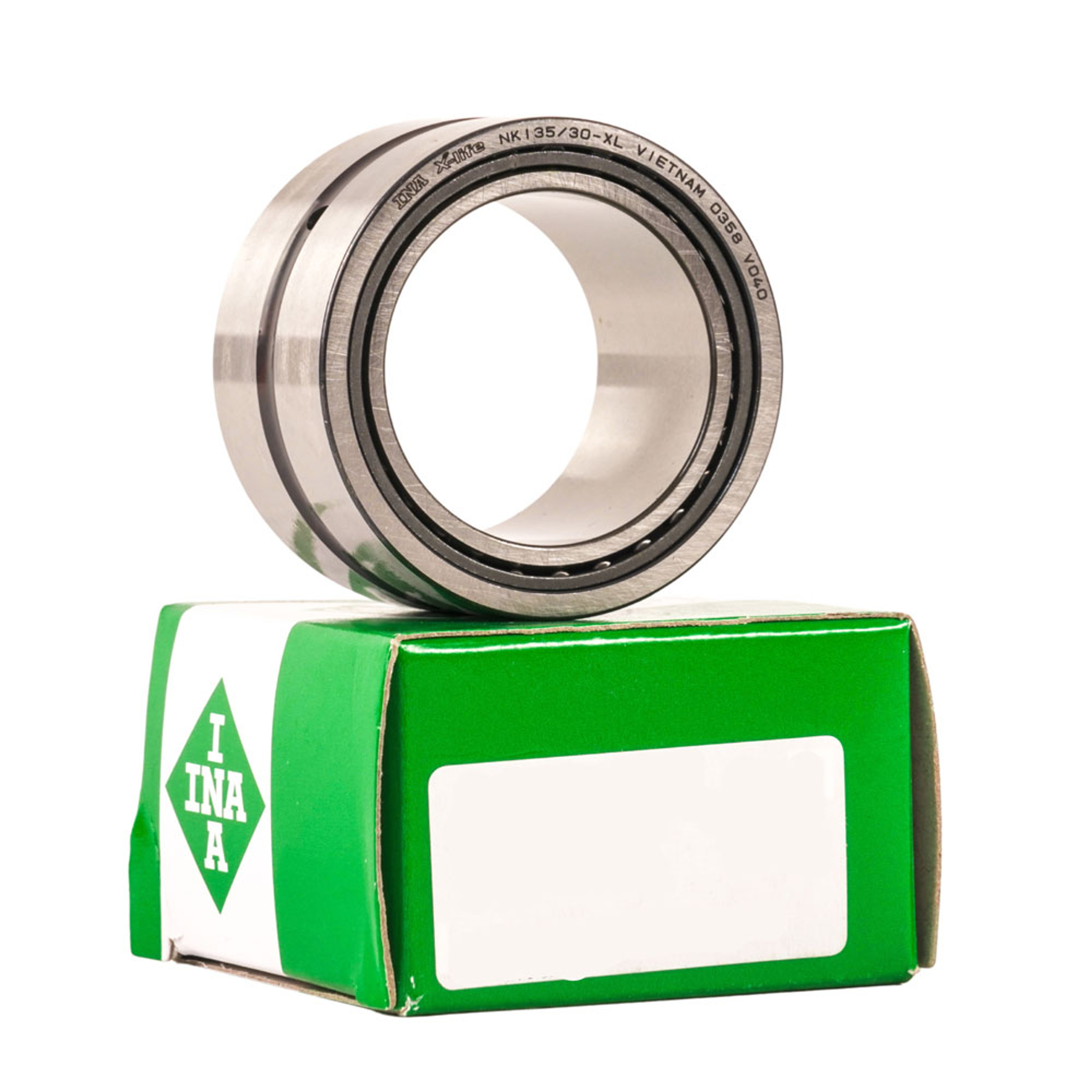

NKI25/30-XL INA Machined Needle Roller Bearing - 25X38X30MM
SKU: nki25/30-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
The NKI25/30-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 25x38x30mm.
The IKO equivalent is TAFI253830.
| NKI | 25 | /30 | XL | |
|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 25mm Bore Size | 30mm Width | X-Life Bearing | Including Inner Ring |
Product Information
Technical Data
Inside Diameter (mm):
25
Outside Diameter (mm):
38
Width (mm):
30
Raceway Diameter Inner Ring (mm):
29
Fatigue Load Rating (kN):
10.7
IKO Equivalent:
TAFI253830
Dynamic Load Rating (kN):
37
Limiting Speed Rating (r/min):
15300
Reference Speed Rating (r/min):
8200
Static Load Rating (kN):
57
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-30°C/-22°F
DescriptionThe NKI25/30-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 25x38x30mm. The IKO equivalent is TAFI253830.
Product InformationBRAND: SKU:nki25/30-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.12 kg Technical DataInside Diameter (mm):25 Outside Diameter (mm):38 Width (mm):30 Raceway Diameter Inner Ring (mm):29 Fatigue Load Rating (kN):10.7 IKO Equivalent:TAFI253830 Dynamic Load Rating (kN):37 Limiting Speed Rating (r/min):15300 Reference Speed Rating (r/min):8200 Static Load Rating (kN):57 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||||
