FAG

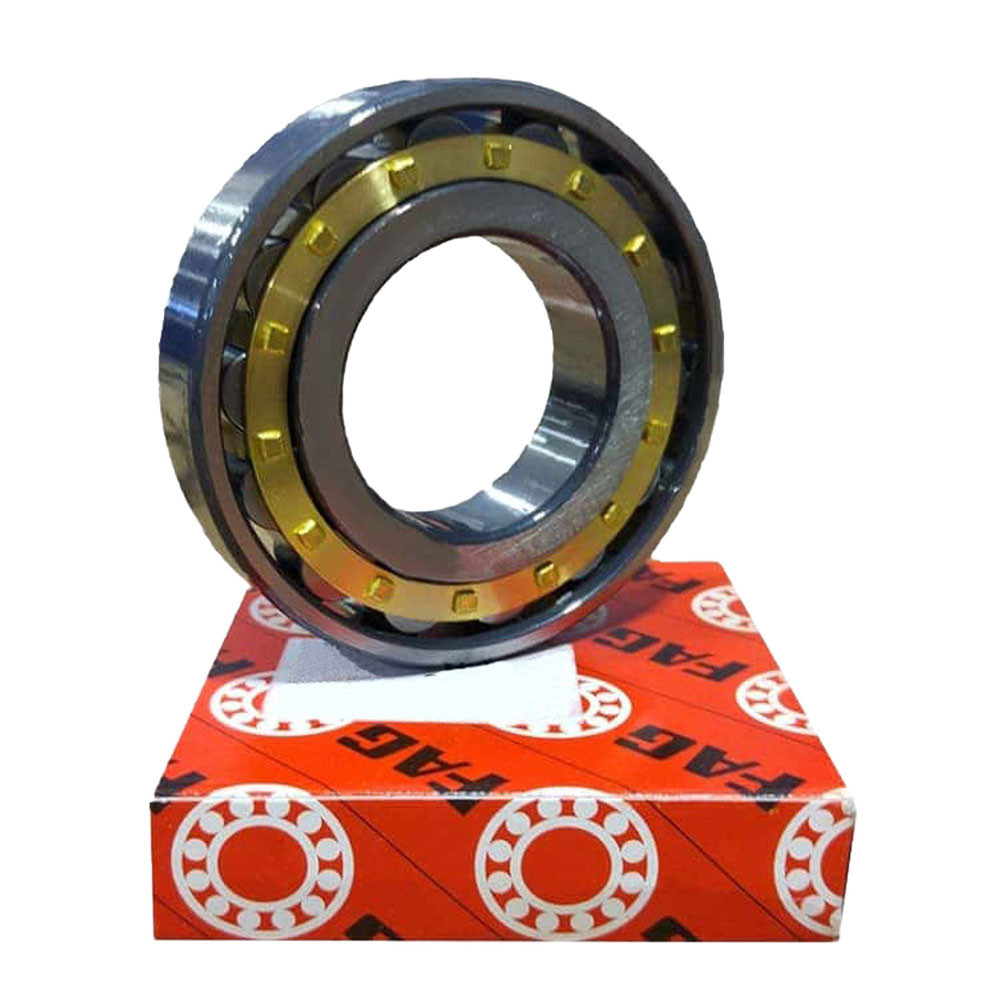

NU228-E-M1-C3 - FAG Cylindrical Roller Bearing - 140x250x42mm
SKU: nu228-e-m1-c3-fag
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This NU228-E-M1-C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, an increased capacity design, a two piece solid brass cage, roller guided and a larger than normal radial internal clearance. The bearing's dimensions are 140x250x42.
| NU | 2 | 28 | E | M1 | C3 |
|---|---|---|---|---|---|
| Two Flanges on Outer Ring and No Flanges on Inner Ring | Light Series | 140mm - Bore Size | Increased Capacity Design | Solid Brass Cage, Two-piece, Roller-guided | Radial Internal Clearance Larger Than Normal |
Product Information
Technical Data
Inside Diameter (mm):
140mm
Outside Diameter (mm):
250mm
Width (mm):
42mm
Cage Type:
Brass
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
460
Static Load Rating (kN):
510
Fatigue Load Rating (kN):
59
Reference Speed Rating (r/min):
2600
Limiting Speed Rating (r/min):
4800
DescriptionThis NU228-E-M1-C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, an increased capacity design, a two piece solid brass cage, roller guided and a larger than normal radial internal clearance. The bearing's dimensions are 140x250x42.
Product InformationBRAND: SKU:nu228-e-m1-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:9.31 kg Technical DataInside Diameter (mm):140mm Outside Diameter (mm):250mm Width (mm):42mm Cage Type:Brass Seals Or Shields:Open Type Clearance:C3 Dynamic Load Rating (kN):460 Static Load Rating (kN):510 Fatigue Load Rating (kN):59 Reference Speed Rating (r/min):2600 Limiting Speed Rating (r/min):4800 | ||||||||||||
