FAG

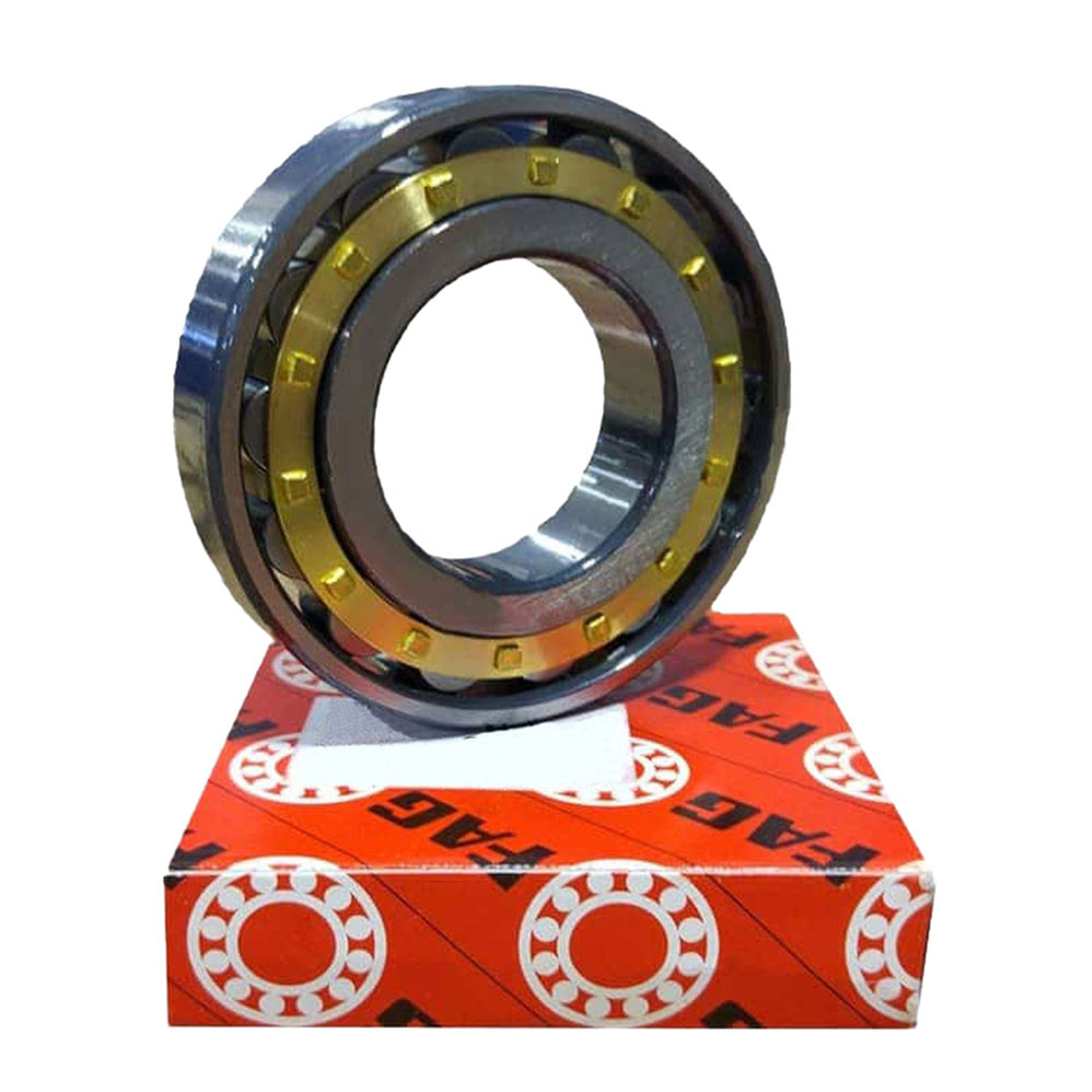

NU2305-E-M1-C3 - FAG Cylindrical Roller Bearing - 25x62x24mm
SKU: nu2305-e-m1-c3-fag
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This NU2305-E-M1-C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, an increased capacity design, a two piece solid brass cage, roller guided and a larger than normal radial internal clearance. The bearing's dimensions are 25x62x24.
| NU | 23 | 05 | E | M1 | C3 |
|---|---|---|---|---|---|
| Two Flanges on Outer Ring and No Flanges on Inner Ring | Medium, Wide Series | 25mm - Bore Size | Increased Capacity Design | Solid Brass Cage, Two-piece, Roller-guided | Radial Internal Clearance Larger Than Normal |
Product Information
Technical Data
Inside Diameter (mm):
25mm
Outside Diameter (mm):
62mm
Width (mm):
24mm
Cage Type:
Brass
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
66
Static Load Rating (kN):
55
Fatigue Load Rating (kN):
9.4
Reference Speed Rating (r/min):
8400
Limiting Speed Rating (r/min):
12000
DescriptionThis NU2305-E-M1-C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, an increased capacity design, a two piece solid brass cage, roller guided and a larger than normal radial internal clearance. The bearing's dimensions are 25x62x24.
Product InformationBRAND: SKU:nu2305-e-m1-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:0.349 kg Technical DataInside Diameter (mm):25mm Outside Diameter (mm):62mm Width (mm):24mm Cage Type:Brass Seals Or Shields:Open Type Clearance:C3 Dynamic Load Rating (kN):66 Static Load Rating (kN):55 Fatigue Load Rating (kN):9.4 Reference Speed Rating (r/min):8400 Limiting Speed Rating (r/min):12000 | ||||||||||||
