FAG

QJ216-N2-MPA - FAG Four Point Contact Bearing - 80x140x26mm

Name: QJ216-N2-MPA - FAG Four Point Contact Bearing - 80x140x26mm
Brand: FAG
SKU: qj216-n2-mpa-fag
Availability: InStock

SKU: qj216-n2-mpa-fag

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$797.82

Description

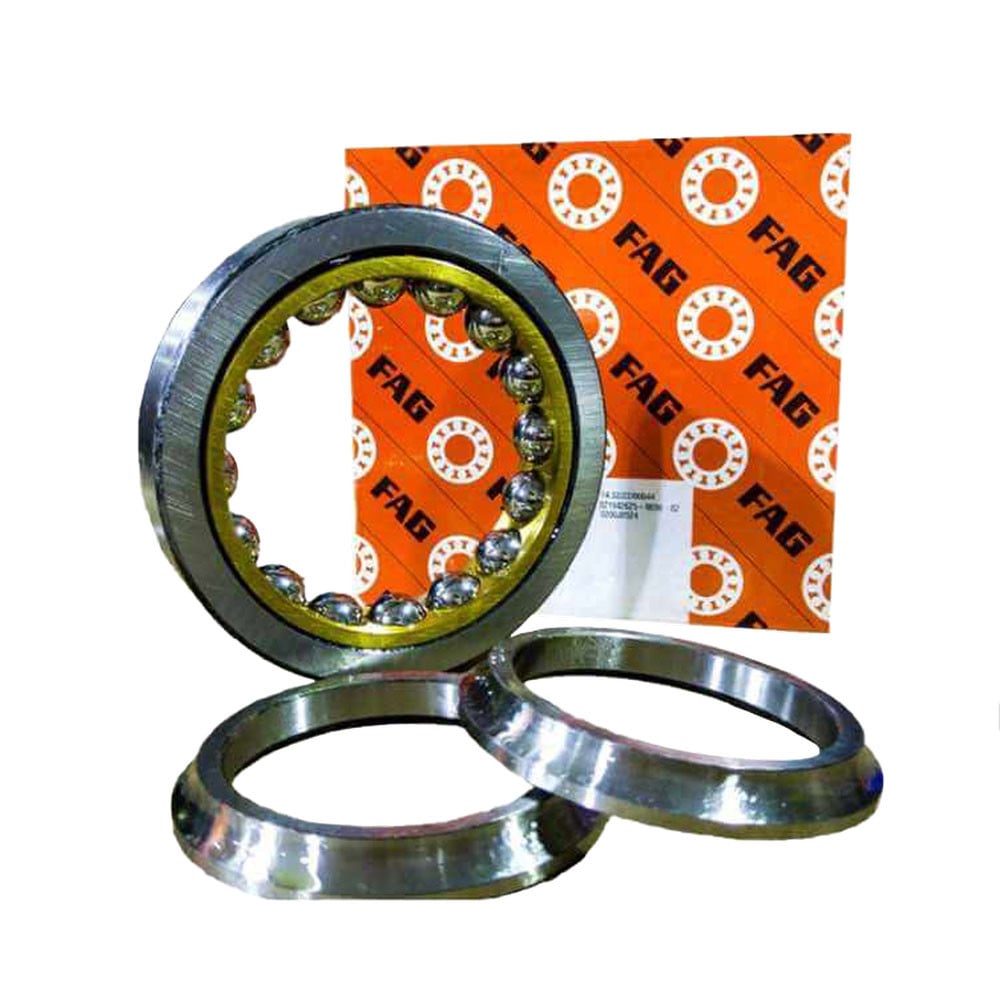

This QJ216-N2-MPA bearing is a a four point contact bearings with two locating slots in the outer ring, 180° apart, a machined brass cage with the outer ring centred and a normal internal clearance. The bearing's dimensions are 80x140x26.

QJ2	16	N2	MPA
QJ2 Series Four Point Contact Bearing	80mm - Bore Size	Two Retaining Slots in Outer Ring	Solid Brass Cage	Normal Axial Internal Clearance

Product Information

BRAND:

SKU:qj216-n2-mpa-fag

AVAILABILITY:In Stock ✅

WEIGHT:1.84 kg

Technical Data

Inside Diameter (mm):

80mm

Outside Diameter (mm):

140mm

Width (mm):

26mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

132

Static Load Rating (kN):

137

Fatigue Load Rating (kN):

7.1

Limiting Speed Rating (r/min):

8000

Description

QJ2	16	N2	MPA
QJ2 Series Four Point Contact Bearing	80mm - Bore Size	Two Retaining Slots in Outer Ring	Solid Brass Cage	Normal Axial Internal Clearance

Product Information

BRAND:

SKU:qj216-n2-mpa-fag

AVAILABILITY:In Stock ✅

WEIGHT:1.84 kg

Technical Data

Inside Diameter (mm):

80mm

Outside Diameter (mm):

140mm

Width (mm):

26mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

132

Static Load Rating (kN):

137

Fatigue Load Rating (kN):

7.1

Limiting Speed Rating (r/min):

8000

Bulk Pricing

For bulk discount on this product, contact our dedicated sales team today by filling out the form below:
