FAG
QJ309-TVP - FAG Four Point Contact Bearing - 45x100x25mm
SKU: qj309-tvp-fag
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description

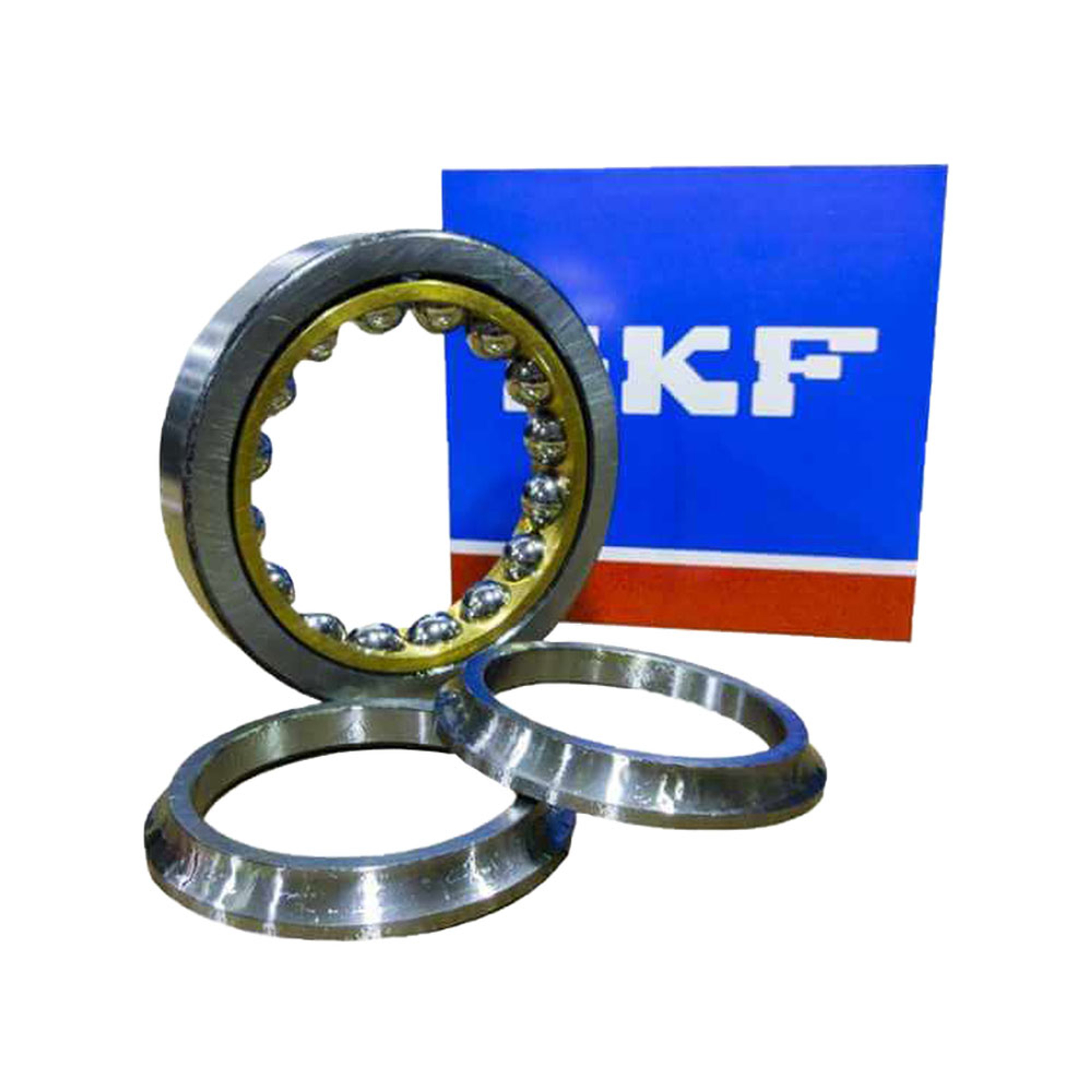

This QJ309-TVP bearing is a a four point contact bearings with a glass fibre reinforced polyamide cage, with lubrication grooves in guided surface, outer ring centred and a normal internal clearance. The bearing's dimensions are 45x100x25.
| QJ3 | 09 | TVP | ||
|---|---|---|---|---|
| QJ3 Series Four Point Contact Bearing | 45mm - Bore Size | Window Cage Made From Glass Fibre Reinforced Polyamide 66 | Normal Axial Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
45mm
Outside Diameter (mm):
100mm
Width (mm):
25mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
Standard
Dynamic Load Rating (kN):
102
Static Load Rating (kN):
83
Fatigue Load Rating (kN):
4.55
Limiting Speed Rating (r/min):
7500
DescriptionThis QJ309-TVP bearing is a a four point contact bearings with a glass fibre reinforced polyamide cage, with lubrication grooves in guided surface, outer ring centred and a normal internal clearance. The bearing's dimensions are 45x100x25.
Product InformationBRAND: SKU:qj309-tvp-fag AVAILABILITY:In Stock ✅ WEIGHT:0.934 kg Technical DataInside Diameter (mm):45mm Outside Diameter (mm):100mm Width (mm):25mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):102 Static Load Rating (kN):83 Fatigue Load Rating (kN):4.55 Limiting Speed Rating (r/min):7500 | ||||||||||
