Description

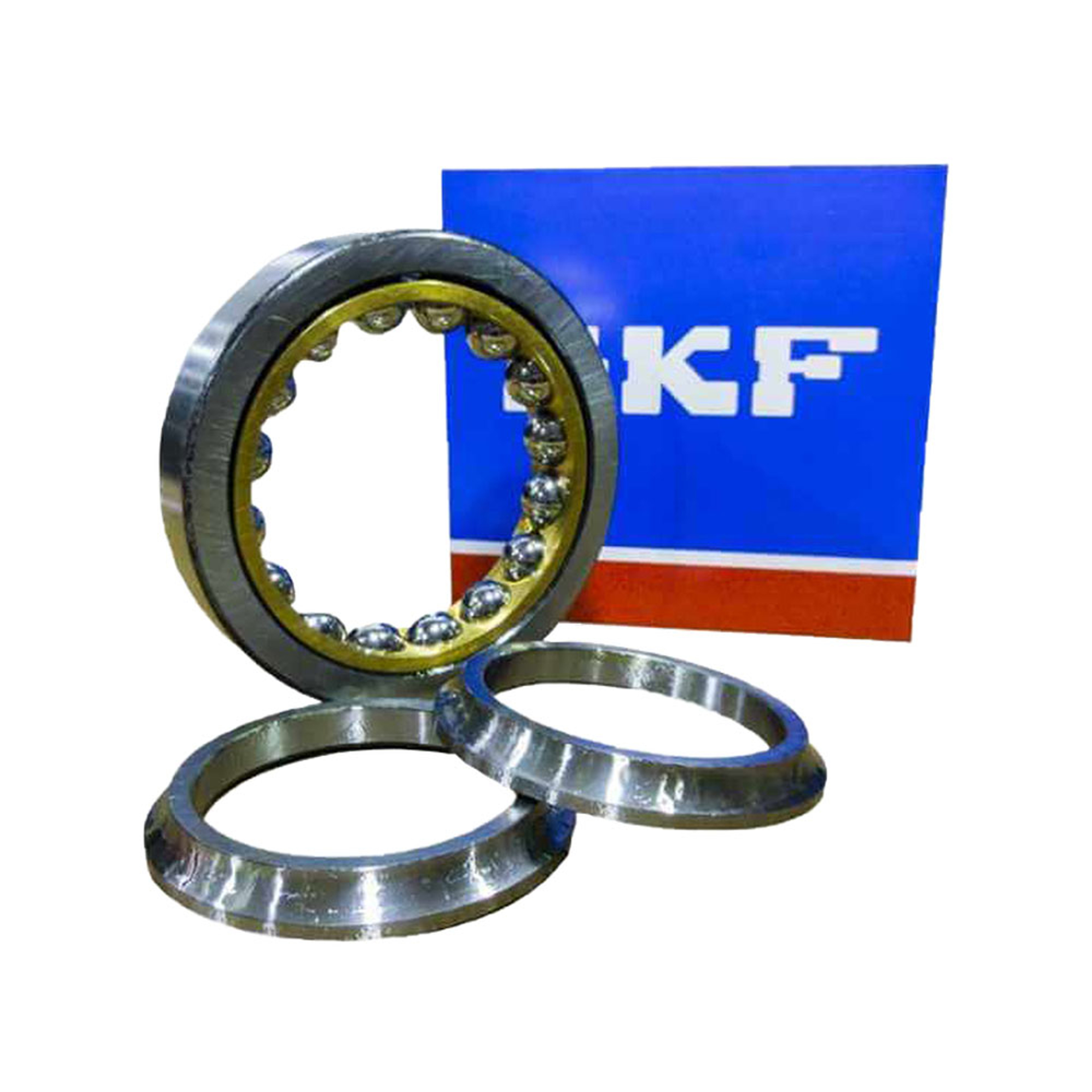

This QJ309MA/C3 bearing is a a four point contact bearings with a machined brass cage with the outer ring centred and a larger than normal internal clearance. The bearing's dimensions are 45x100x25.
| QJ3 | 09 | MA | /C3 | |
|---|---|---|---|---|
| QJ 3 Series Four Point Contact Bearing | 45mm - Bore Size | No Locating Slots | Machined Brass Cage, Outer Ring Centred | Axial Internal Clearance Greater Than Normal |
Product Information
Technical Data
Inside Diameter (mm):
45mm
Outside Diameter (mm):
100mm
Width (mm):
25mm
Cage Type:
Brass
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
100
Static Load Rating (kN):
83
Fatigue Load Rating (kN):
3.55
Reference Speed Rating (r/min):
9000
Limiting Speed Rating (r/min):
12000
DescriptionThis QJ309MA/C3 bearing is a a four point contact bearings with a machined brass cage with the outer ring centred and a larger than normal internal clearance. The bearing's dimensions are 45x100x25.
Product InformationBRAND: SKU:qj309ma/c3-skf AVAILABILITY:In Stock ✅ WEIGHT:1.05 kg Technical DataInside Diameter (mm):45mm Outside Diameter (mm):100mm Width (mm):25mm Cage Type:Brass Seals Or Shields:Open Type Clearance:C3 Dynamic Load Rating (kN):100 Static Load Rating (kN):83 Fatigue Load Rating (kN):3.55 Reference Speed Rating (r/min):9000 Limiting Speed Rating (r/min):12000 | ||||||||||
