QJ316N2MA/C3 - SKF Four Point Contact Bearings - 80x170x39mm

Name: QJ316N2MA/C3 - SKF Four Point Contact Bearings - 80x170x39mm
Brand: SKF
SKU: qj316n2ma/c3-skf
Availability: InStock

SKU: qj316n2ma/c3-skf

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$1,172.09

QJ316N2MA/C3 - SKF Four Point Contact Bearings - 80x170x39mm

Description

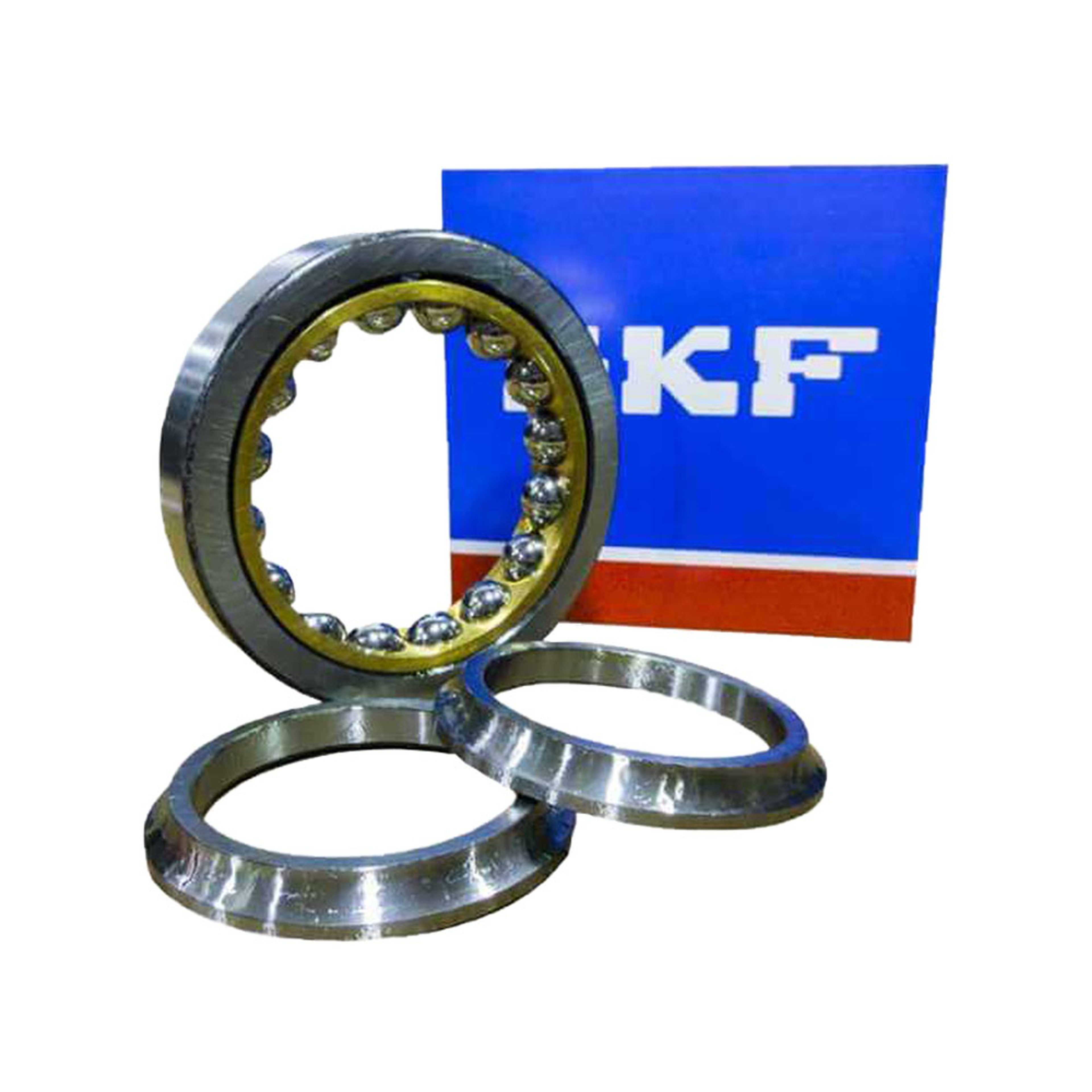

This QJ316N2MA/C3 bearing is a a four point contact bearings with two locating slots in the outer ring, 180° apart, a machined brass cage with the outer ring centred and a larger than normal internal clearance. The bearing's dimensions are 80x170x39.

QJ3	16	N2	MA	/C3
QJ 3 Series Four Point Contact Bearing	80mm - Bore Size	Two Locating Slots in One Outer Ring Side Face, 180° Apart	Machined Brass Cage, Outer Ring Centred	Axial Internal Clearance Greater Than Normal

Product Information

BRAND:

SKU:qj316n2ma/c3-skf

AVAILABILITY:In Stock ✅

WEIGHT:4.6 kg

Technical Data

Inside Diameter (mm):

80mm

Outside Diameter (mm):

170mm

Width (mm):

39mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Dynamic Load Rating (kN):

232

Static Load Rating (kN):

228

Fatigue Load Rating (kN):

8.65

Reference Speed Rating (r/min):

5000

Limiting Speed Rating (r/min):

7000

Description

QJ3	16	N2	MA	/C3
QJ 3 Series Four Point Contact Bearing	80mm - Bore Size	Two Locating Slots in One Outer Ring Side Face, 180° Apart	Machined Brass Cage, Outer Ring Centred	Axial Internal Clearance Greater Than Normal

Product Information

BRAND:

SKU:qj316n2ma/c3-skf

AVAILABILITY:In Stock ✅

WEIGHT:4.6 kg

Technical Data

Inside Diameter (mm):

80mm

Outside Diameter (mm):

170mm

Width (mm):

39mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Dynamic Load Rating (kN):

232

Static Load Rating (kN):

228

Fatigue Load Rating (kN):

8.65

Reference Speed Rating (r/min):

5000

Limiting Speed Rating (r/min):

7000
