INA

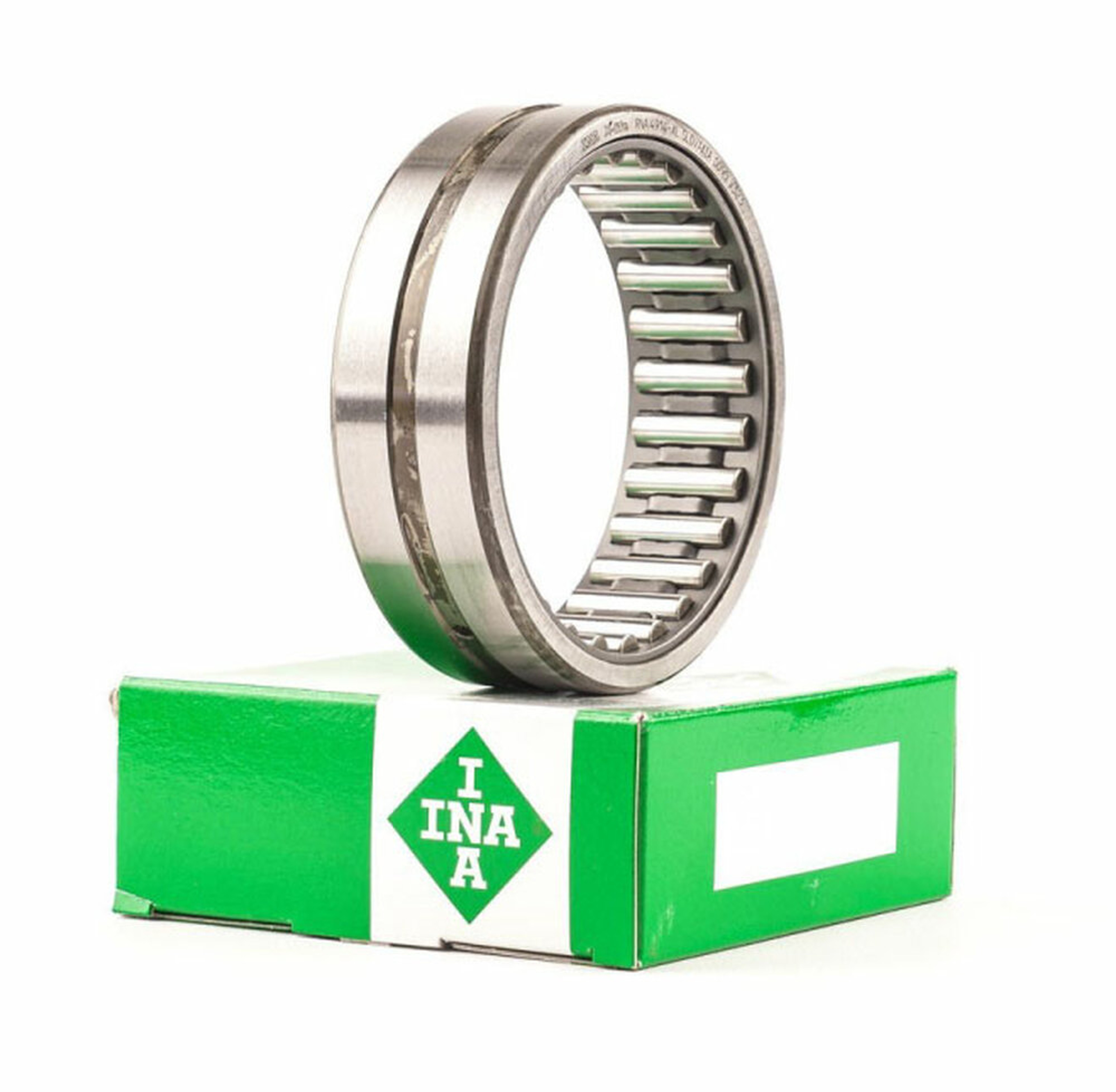

RNA4826-XL INA Machined Needle Roller Bearing - 145X165X35MM
SKU: rna4826-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
The RNA4826-XL is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with a lubrication groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 145X165X35mm.

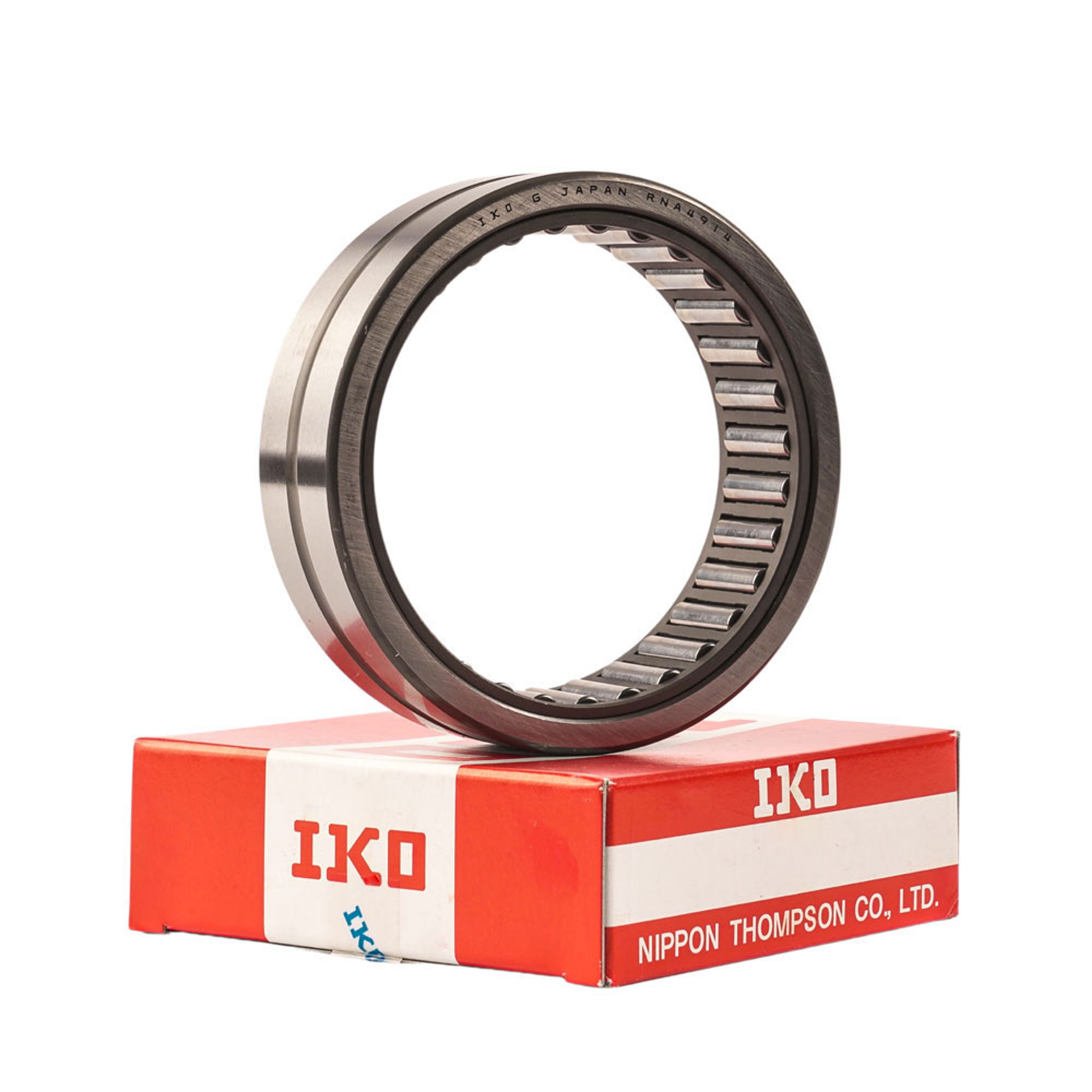

The IKO equivalent is RNA4826.
| RNA | 48 | 26 | XL |
|---|---|---|---|
| Single Row Caged Needle Roller Bearing | Dimension Series 48 | 145mm - Bore Size | X-Life Bearing |
Product Information
Technical Data
Inside Diameter (mm):
145
Outside Diameter (mm):
165
Width (mm):
35
Under Roller Diameter (mm):
145
Fatigue Load Rating (kN):
49.5
IKO Equivalent:
RNA4826
Dynamic Load Rating (kN):
134
Limiting Speed Rating (r/min):
3250
Reference Speed Rating (r/min):
2000
Static Load Rating (kN):
310
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-30°C/-22°F
DescriptionThe RNA4826-XL is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with a lubrication groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 145X165X35mm. The IKO equivalent is RNA4826.
Product InformationBRAND: SKU:rna4826-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.938 kg Technical DataInside Diameter (mm):145 Outside Diameter (mm):165 Width (mm):35 Under Roller Diameter (mm):145 Fatigue Load Rating (kN):49.5 IKO Equivalent:RNA4826 Dynamic Load Rating (kN):134 Limiting Speed Rating (r/min):3250 Reference Speed Rating (r/min):2000 Static Load Rating (kN):310 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||
