Description

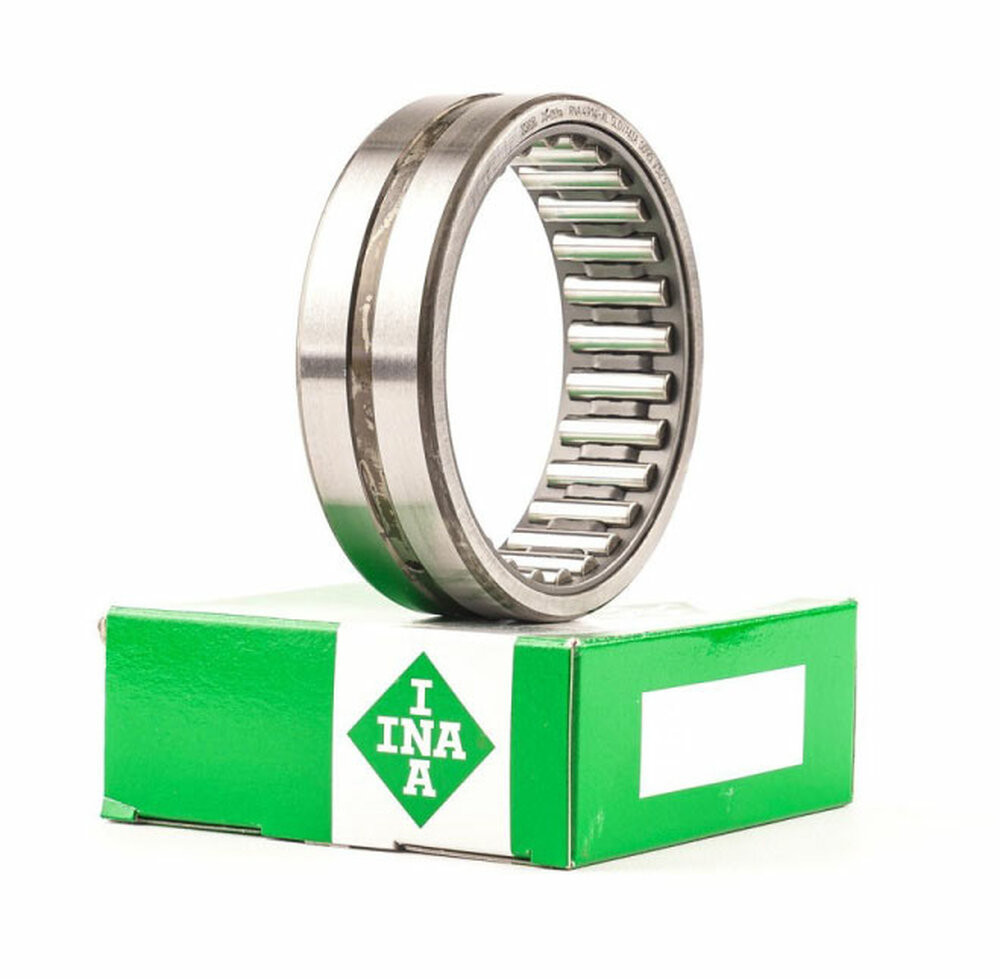

The RNA4836 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 195X225X45mm.
The INA equivalent is RNA4836-XL.
| RNA | 48 | 36 |
|---|---|---|
| Single Row Caged Needle Roller Bearing | Dimension Series 48 | 195mm - Bore Size |
Product Information
Technical Data
Inside Diameter (mm):
195
Outside Diameter (mm):
225
Width (mm):
45
Nominal Roller Set Bore Diameter (mm):
195
INA Equivalent:
RNA4836-XL
Dynamic Load Rating (kN):
218
Static Load Rating (kN):
602
Allowable Rotational Speed (r/min):
1900
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-20°C/-4°F
DescriptionThe RNA4836 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 195X225X45mm. The INA equivalent is RNA4836-XL.
Product InformationBRAND: SKU:rna4836-iko AVAILABILITY:In Stock ✅ WEIGHT:2.84 kg Technical DataInside Diameter (mm):195 Outside Diameter (mm):225 Width (mm):45 Nominal Roller Set Bore Diameter (mm):195 INA Equivalent:RNA4836-XL Dynamic Load Rating (kN):218 Static Load Rating (kN):602 Allowable Rotational Speed (r/min):1900 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||
