Description

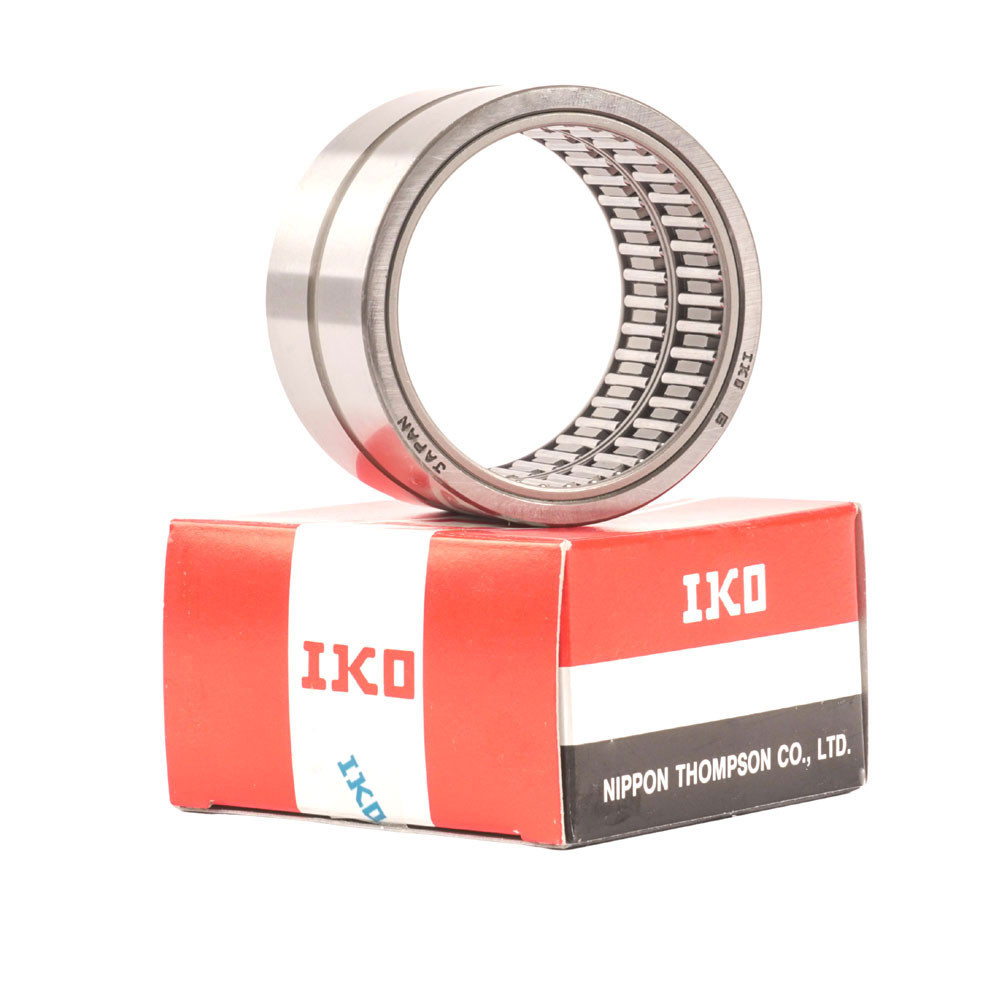

The RNA6917 is a Standard Duty Open Type, Double Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 100X120X63mm.
The INA equivalent is RNA6917-ZW-XL.
| RNA | 69 | 17 |
|---|---|---|
| Double Row Caged Needle Roller Bearing | Dimension Series 69 | 100mm - Bore Size |
Product Information
Technical Data
Inside Diameter (mm):
100
Outside Diameter (mm):
120
Width (mm):
63
Nominal Roller Set Bore Diameter (mm):
100
INA Equivalent:
RNA6917-ZW-XL
Dynamic Load Rating (kN):
173
Static Load Rating (kN):
467
Allowable Rotational Speed (r/min):
4000
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-20°C/-4°F
DescriptionThe RNA6917 is a Standard Duty Open Type, Double Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 100X120X63mm. The INA equivalent is RNA6917-ZW-XL.
Product InformationBRAND: SKU:rna6917-iko AVAILABILITY:In Stock ✅ WEIGHT:1.3 kg Technical DataInside Diameter (mm):100 Outside Diameter (mm):120 Width (mm):63 Nominal Roller Set Bore Diameter (mm):100 INA Equivalent:RNA6917-ZW-XL Dynamic Load Rating (kN):173 Static Load Rating (kN):467 Allowable Rotational Speed (r/min):4000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||
