Description

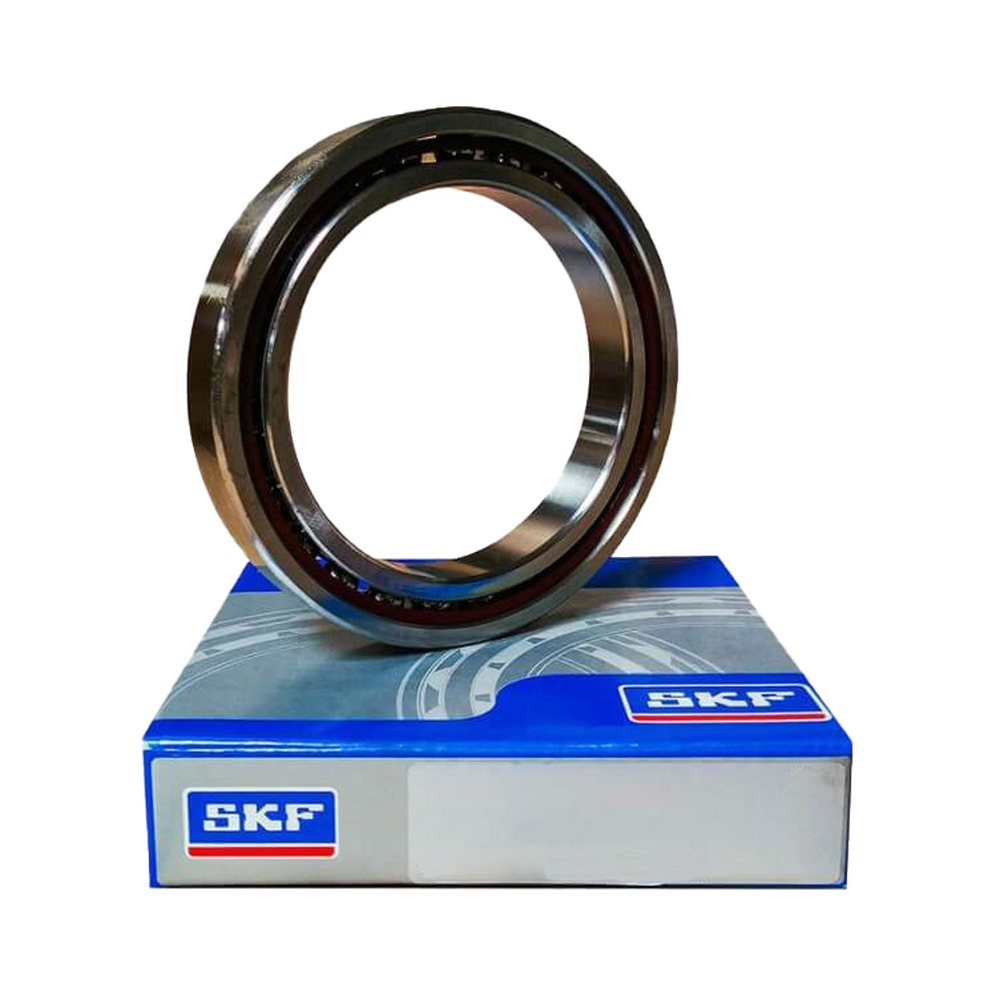

This S71920ACBGA/HCP4A bearing is a Super Precision angular contact bearing with 2 rubber seals, a 25° contact angle and the balls are hybrid ceramic, also known as bearing grade Silicon Nitride. This bearing is a universal fit single bearing with a light preload and a P4 precision rating. The bearing's dimensions are 100x140x20. The B design bearings are designed for high-speed operation and are best suited for lighter loads. Often used in Machine Tools, or other precision applications, these bearings are known for their high-speed capabilities, robust seals, and superior accuracy.
| S | 719 | 20 | ACB | GA | /HC | P4A |
|---|---|---|---|---|---|---|
| Sealed | Series - Extremely Light | 100mm - Bore Size | 25° Contact Angle, High Speed B Design | Single Universal, Light Preload | Balls are Bearing Grade Silicon Nitride (Hybrid Bearing) | Precision Rating |
Product Information
Technical Data
Inside Diameter (mm) :
100mm
Outside Diameter (mm) :
140mm
Width (mm) :
20mm
Cage Type :
Plastic
Clearance :
Standard
Dynamic Load Rating (kN) :
20.8
Static Load Rating (kN) :
21.2
Grease Limiting Speed (r/min) :
13000
Oil Limiting Speed (r/min) :
20000
Seals Or Shields :
Two Rubber Seals
Preload :
Light
DescriptionThis S71920ACBGA/HCP4A bearing is a Super Precision angular contact bearing with 2 rubber seals, a 25° contact angle and the balls are hybrid ceramic, also known as bearing grade Silicon Nitride. This bearing is a universal fit single bearing with a light preload and a P4 precision rating. The bearing's dimensions are 100x140x20. The B design bearings are designed for high-speed operation and are best suited for lighter loads. Often used in Machine Tools, or other precision applications, these bearings are known for their high-speed capabilities, robust seals, and superior accuracy.
Product InformationBRAND: SKU:s71920acbga/hcp4a-skf AVAILABILITY:In Stock ✅ WEIGHT:0.8 kg Technical DataInside Diameter (mm) :100mm Outside Diameter (mm) :140mm Width (mm) :20mm Cage Type :Plastic Clearance :Standard Dynamic Load Rating (kN) :20.8 Static Load Rating (kN) :21.2 Grease Limiting Speed (r/min) :13000 Oil Limiting Speed (r/min) :20000 Seals Or Shields :Two Rubber Seals Preload :Light | ||||||||||||||
