FYH

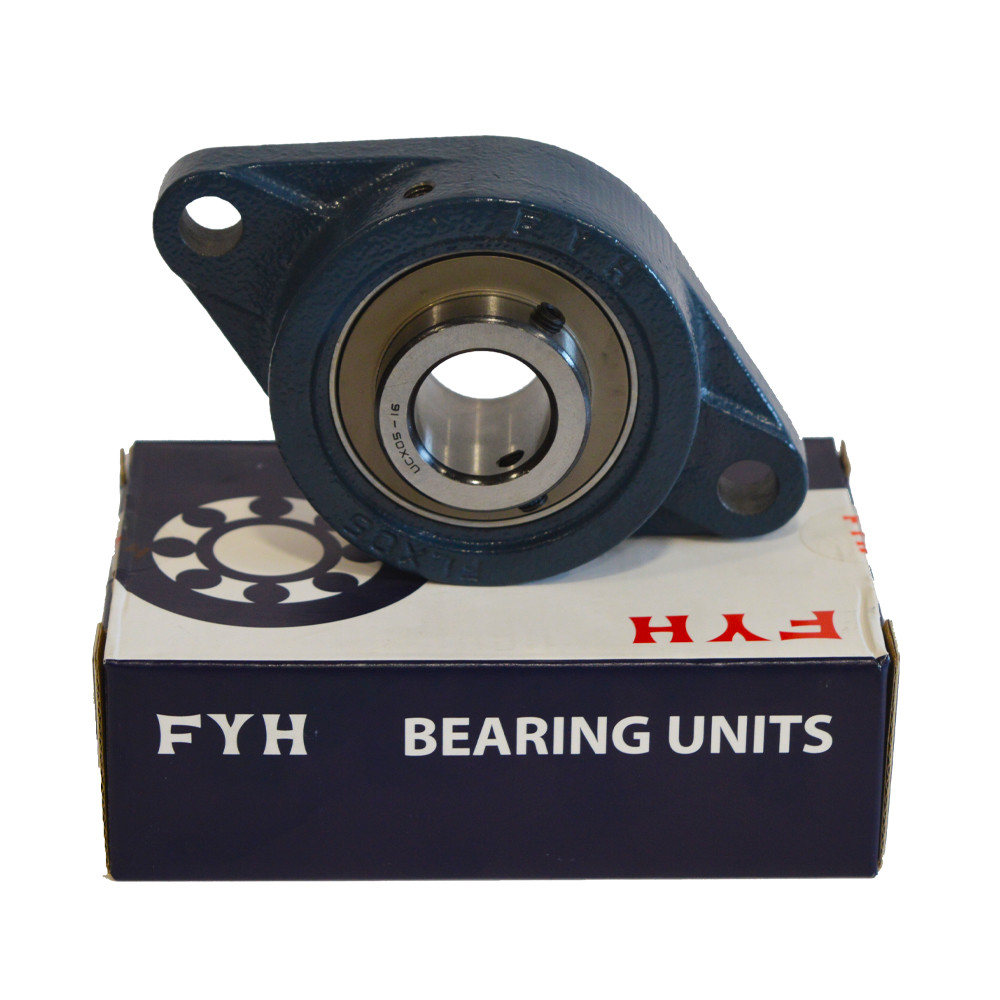

UCFL209-28E - FYH Oval Flanged Bearing Unit - 1.3/4 Inch Inside Diameter
SKU: ucfl209-28e-fyh
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
$98.03
FYH
SKU: ucfl209-28e-fyh
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Discover the UCFL209-28E from FYH, the perfect solution for your flanged assembly requirements. This Oval Flanged Bearing Unit comes pre-lubricated and fitted with a sealed Bearing Insert for the highest durability and longevity. Crafted from high-quality cast iron, the UCFL209-28E Unit boasts exceptional strength and reliability, making it suitable for a wide range of applications. This medium duty two-bolt flanged unit has hexagon socket set screws and a 1.3/4 Inch shaft diamter.
The UCFL209-28E Bearing Unit has a UC209-28 Bearing Insert which can be easily removed from the FL209E housing and replaced. Other compatible inserts can be used in the same housing.
Fitted with a new sealed Bearing Insert and housing, the UCFL209-28E ensures smooth operation, easy mounting, and high reliability, guaranteeing optimal performance in diverse environments.
The convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCFL209-28E Oval Flanged Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load.
Constructed with a single cast housing piece, the UCFL209-28E offers basic protection against corrosion, enhancing durability and longevity.
The UCFL209-28E allows for effortless re-lubrication via the grease hole and a grease fitting, promoting smooth operation and prolonging the lifespan of the bearing assembly.
These Flanged Housing Units are relied upon in many industries, including mining, agriculture, manufacturing and production, and industrial engineering.
34.1
1.3/4 Inch
21.3
UC209-28
148.4mm
108mm
FL209E
1/2
49.2mm
188mm
DescriptionDiscover the UCFL209-28E from FYH, the perfect solution for your flanged assembly requirements. This Oval Flanged Bearing Unit comes pre-lubricated and fitted with a sealed Bearing Insert for the highest durability and longevity. Crafted from high-quality cast iron, the UCFL209-28E Unit boasts exceptional strength and reliability, making it suitable for a wide range of applications. This medium duty two-bolt flanged unit has hexagon socket set screws and a 1.3/4 Inch shaft diamter. Key FeaturesReplaceable InsertsThe UCFL209-28E Bearing Unit has a UC209-28 Bearing Insert which can be easily removed from the FL209E housing and replaced. Other compatible inserts can be used in the same housing. Smooth OperationFitted with a new sealed Bearing Insert and housing, the UCFL209-28E ensures smooth operation, easy mounting, and high reliability, guaranteeing optimal performance in diverse environments. Self-Aligning AbilityThe convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCFL209-28E Oval Flanged Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load. Corrosion ProtectionConstructed with a single cast housing piece, the UCFL209-28E offers basic protection against corrosion, enhancing durability and longevity. Re-lubrication CapabilityThe UCFL209-28E allows for effortless re-lubrication via the grease hole and a grease fitting, promoting smooth operation and prolonging the lifespan of the bearing assembly. Versatile Industry ApplicationsThese Flanged Housing Units are relied upon in many industries, including mining, agriculture, manufacturing and production, and industrial engineering. Product InformationBRAND: SKU:ucfl209-28e-fyh AVAILABILITY:In Stock ✅ WEIGHT:1.9 kg Technical DataDynamic Load Rating (kN):34.1 Shaft Diameter (Inch):1.3/4 Inch Static Load Rating (kN):21.3 Bearing Insert:UC209-28 Bolt Hole Center (mm):148.4mm Housing Length (mm):108mm Housing Number:FL209E Bolt Size:1/2 Width (B):49.2mm Height (H):188mm |
