FYH

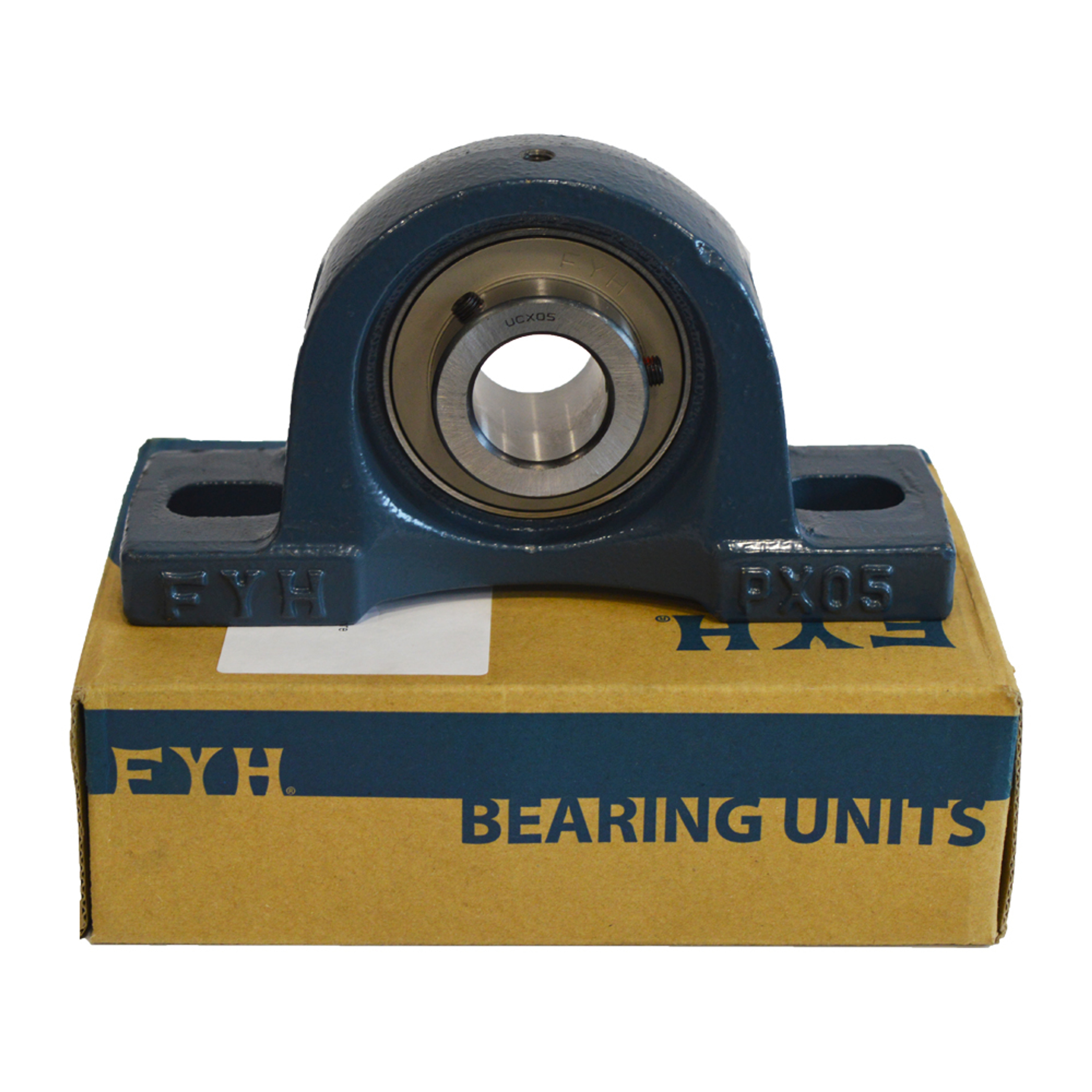

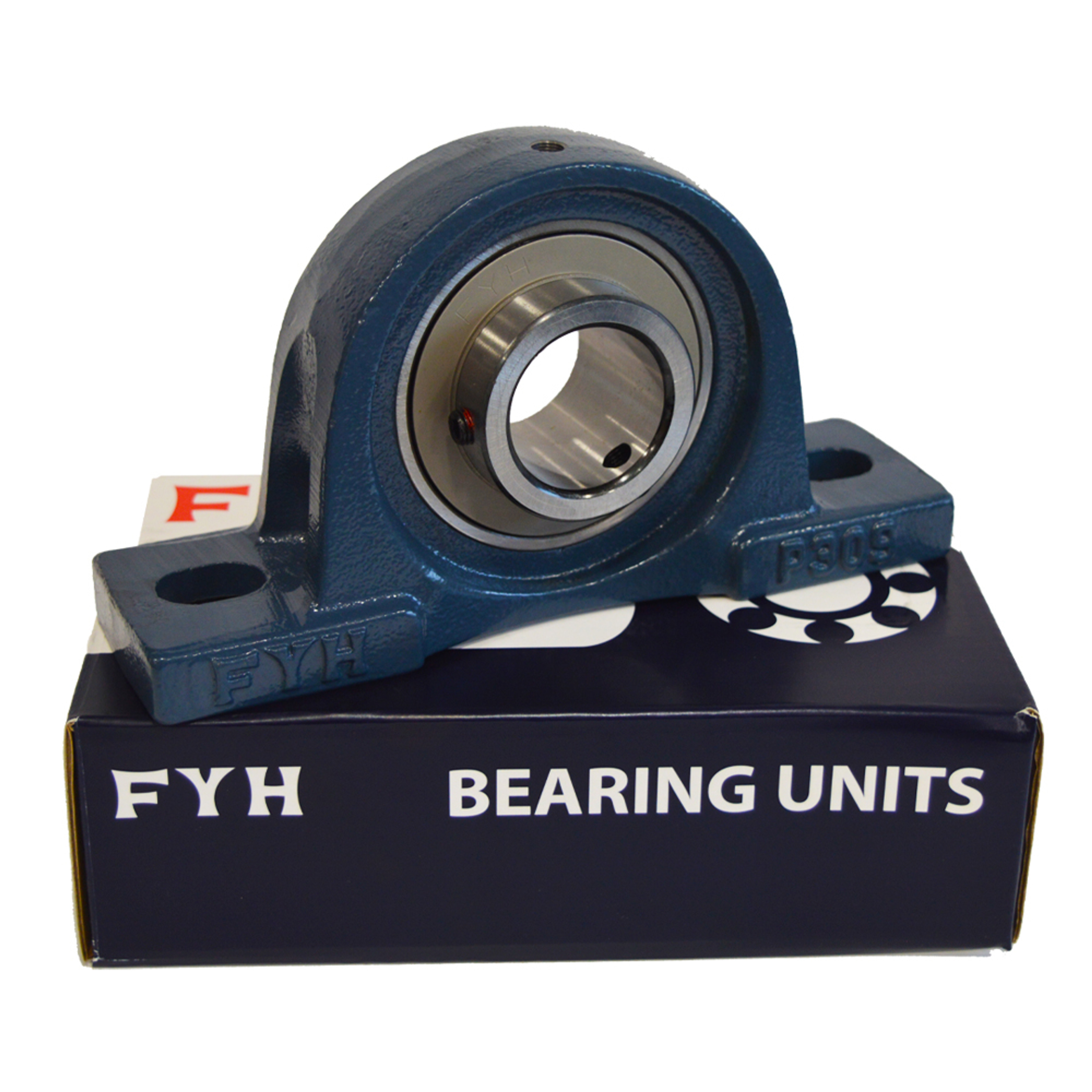

UCPA208-24 - FYH Short Based Cast Iron Pillow Block - 1.1/2 Inch Inside Diameter
SKU: ucpa208-24-fyh
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
$102.08
FYH
SKU: ucpa208-24-fyh
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
The UCPA208-24 FYH Short Based Cast Iron Pillow Block is the ideal solution for your bearing and housing assembly needs. This sturdy Pillow Block comes equipped with a fully sealed Bearing Insert already fitted within the housing, ensuring optimal performance and durability. Crafted from high-quality cast iron, this Pillow Block boasts exceptional strength and reliability, making it suitable for a wide range of applications. This two-bolt unit has hexagon socket set screws and a 1.1/2 Inch shaft diameter.
The Bearing Insert in the UCPA208-24 can be easily removed from the PA208 housing, allowing for future replacements as needed.
The convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCPA208-24 Pillow Block Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load.
Equipped with two hexagon socket set screws, the Bearing Insert securely tightens against the shaft once fitted, ensuring stability, and reducing the risk of slippage or misalignment.
The UCPA208-24 allows for effortless re-lubrication via the grease hole and a grease fitting, promoting smooth operation and prolonging the lifespan of the bearing assembly.
These Pillow Block Bearing Units are relied upon in many industries, including mining, agriculture, manufacturing and production, and industrial engineering.
29.1
1.1/2 Inch
17.8
UC208-24
58mm
84mm
116mm
PA208
49.2mm
M14x2
DescriptionThe UCPA208-24 FYH Short Based Cast Iron Pillow Block is the ideal solution for your bearing and housing assembly needs. This sturdy Pillow Block comes equipped with a fully sealed Bearing Insert already fitted within the housing, ensuring optimal performance and durability. Crafted from high-quality cast iron, this Pillow Block boasts exceptional strength and reliability, making it suitable for a wide range of applications. This two-bolt unit has hexagon socket set screws and a 1.1/2 Inch shaft diameter. Key FeaturesReplaceable InsertsThe Bearing Insert in the UCPA208-24 can be easily removed from the PA208 housing, allowing for future replacements as needed. Self-Aligning AbilityThe convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCPA208-24 Pillow Block Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load. Set Screw FixingEquipped with two hexagon socket set screws, the Bearing Insert securely tightens against the shaft once fitted, ensuring stability, and reducing the risk of slippage or misalignment. Re-lubrication CapabilityThe UCPA208-24 allows for effortless re-lubrication via the grease hole and a grease fitting, promoting smooth operation and prolonging the lifespan of the bearing assembly. Versatile Industry ApplicationsThese Pillow Block Bearing Units are relied upon in many industries, including mining, agriculture, manufacturing and production, and industrial engineering. Product InformationBRAND: SKU:ucpa208-24-fyh AVAILABILITY:In Stock ✅ WEIGHT:2 kg Technical DataDynamic Load Rating (kN):29.1 Shaft Diameter (Inch):1.1/2 Inch Static Load Rating (kN):17.8 Bearing Insert:UC208-24 Base Width (mm):58mm Bolt Hole Center (mm):84mm Housing Length (mm):116mm Housing Number:PA208 Center Height (H):49.2mm Bolt Size:M14x2 |
