Description

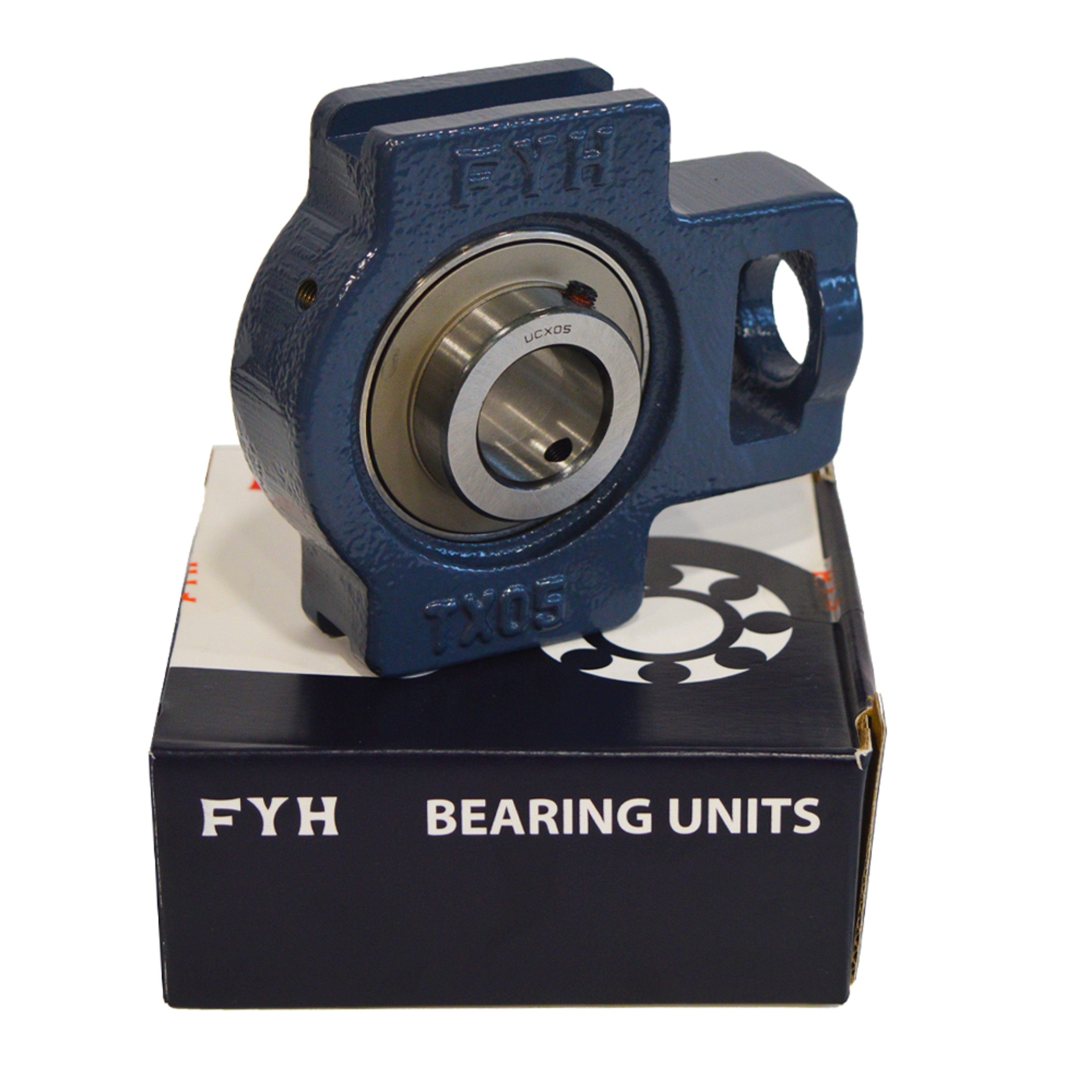

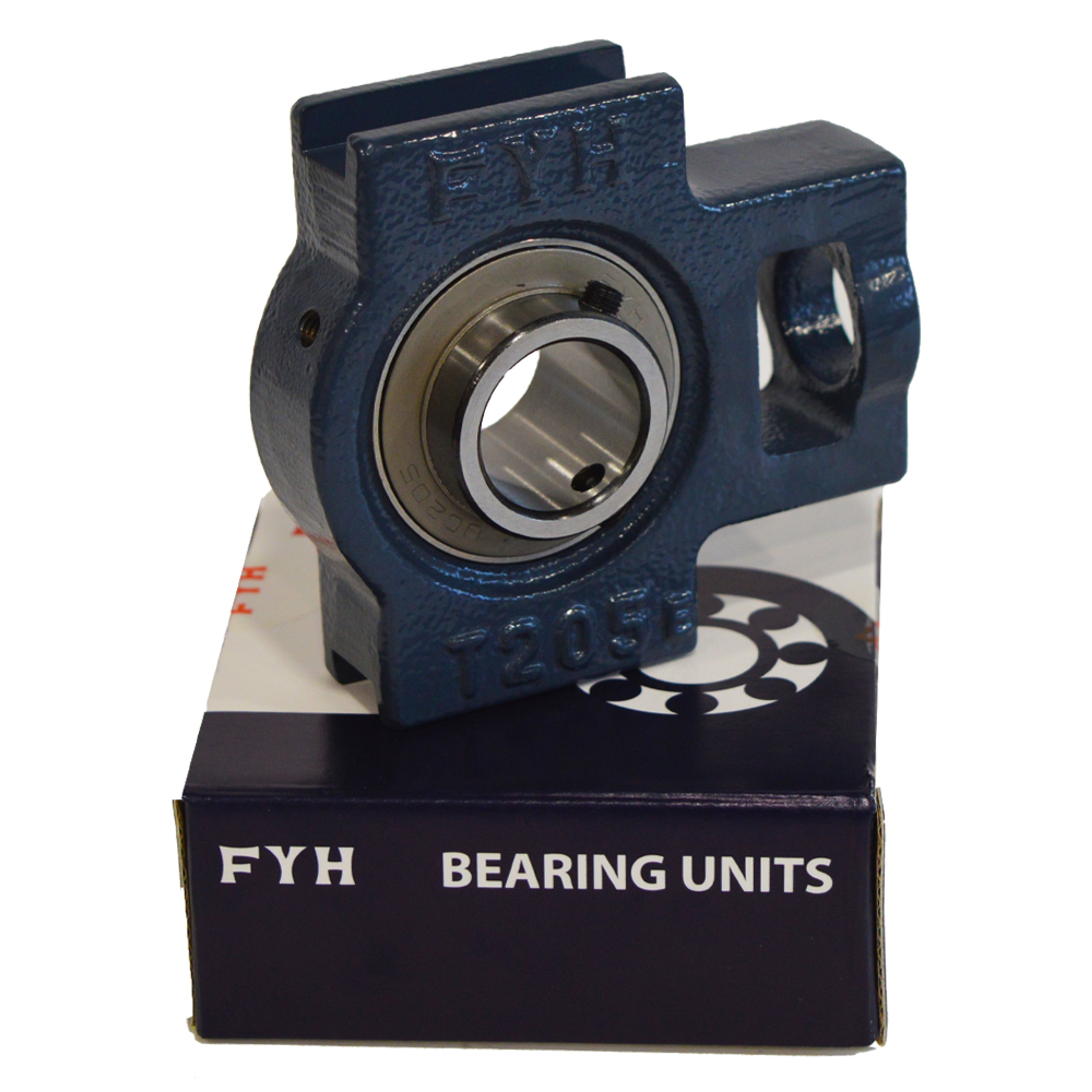

Introducing the FYH UCT305-16 Take-Up Unit, engineered to deliver exceptional performance and reliability in various industrial applications. This meticulously crafted Take-Up Unit is designed by FYH, a renowned leader in bearing technology, ensuring unparalleled quality and durability. This robust unit comes fitted with a new, fully sealed, UC305-16 Bearing Insert with a 1 Inch inside diameter.
Key Features
High-Quality Construction
Constructed with precision using premium-grade cast iron, the FYH UCT305-16 boasts superior durability, capable of withstanding heavy loads and harsh operating conditions.
Efficient Take-Up Design
The take-up design allows for easy adjustment of the bearing position, facilitating optimal tensioning of belts or chains, ensuring smooth and efficient operation.
Versatile Application
Suitable for a wide range of industrial machinery and equipment, including conveyors, fans, agricultural machinery, and more, this unit offers versatility in application.
Replaceable Inserts
The Bearing Insert in the UCT305-16 can be easily removed from the T305 housing, allowing for future replacements as needed.Self-Aligning Ability
The convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCT305-16 Take-Up Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load.
Product Information
Technical Data
Dynamic Load Rating (kN) :
21.2
Shaft Diameter (Inch) :
1 Inch
Static Load Rating (kN) :
10.9
Bearing Insert :
UC305-16
Housing Length (mm) :
122mm
Housing Number :
T305
Height (H) :
89mm
A1 (Machine Slot) :
12mm
DescriptionIntroducing the FYH UCT305-16 Take-Up Unit, engineered to deliver exceptional performance and reliability in various industrial applications. This meticulously crafted Take-Up Unit is designed by FYH, a renowned leader in bearing technology, ensuring unparalleled quality and durability. This robust unit comes fitted with a new, fully sealed, UC305-16 Bearing Insert with a 1 Inch inside diameter. Key FeaturesHigh-Quality ConstructionConstructed with precision using premium-grade cast iron, the FYH UCT305-16 boasts superior durability, capable of withstanding heavy loads and harsh operating conditions. Efficient Take-Up DesignThe take-up design allows for easy adjustment of the bearing position, facilitating optimal tensioning of belts or chains, ensuring smooth and efficient operation. Versatile ApplicationSuitable for a wide range of industrial machinery and equipment, including conveyors, fans, agricultural machinery, and more, this unit offers versatility in application. Replaceable InsertsThe Bearing Insert in the UCT305-16 can be easily removed from the T305 housing, allowing for future replacements as needed.Self-Aligning AbilityThe convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCT305-16 Take-Up Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load. Product InformationBRAND: SKU:uct305-16-fyh AVAILABILITY:In Stock ✅ WEIGHT:1.4 kg Technical DataDynamic Load Rating (kN) :21.2 Shaft Diameter (Inch) :1 Inch Static Load Rating (kN) :10.9 Bearing Insert :UC305-16 Housing Length (mm) :122mm Housing Number :T305 Height (H) :89mm A1 (Machine Slot) :12mm | ||||||||
