Description

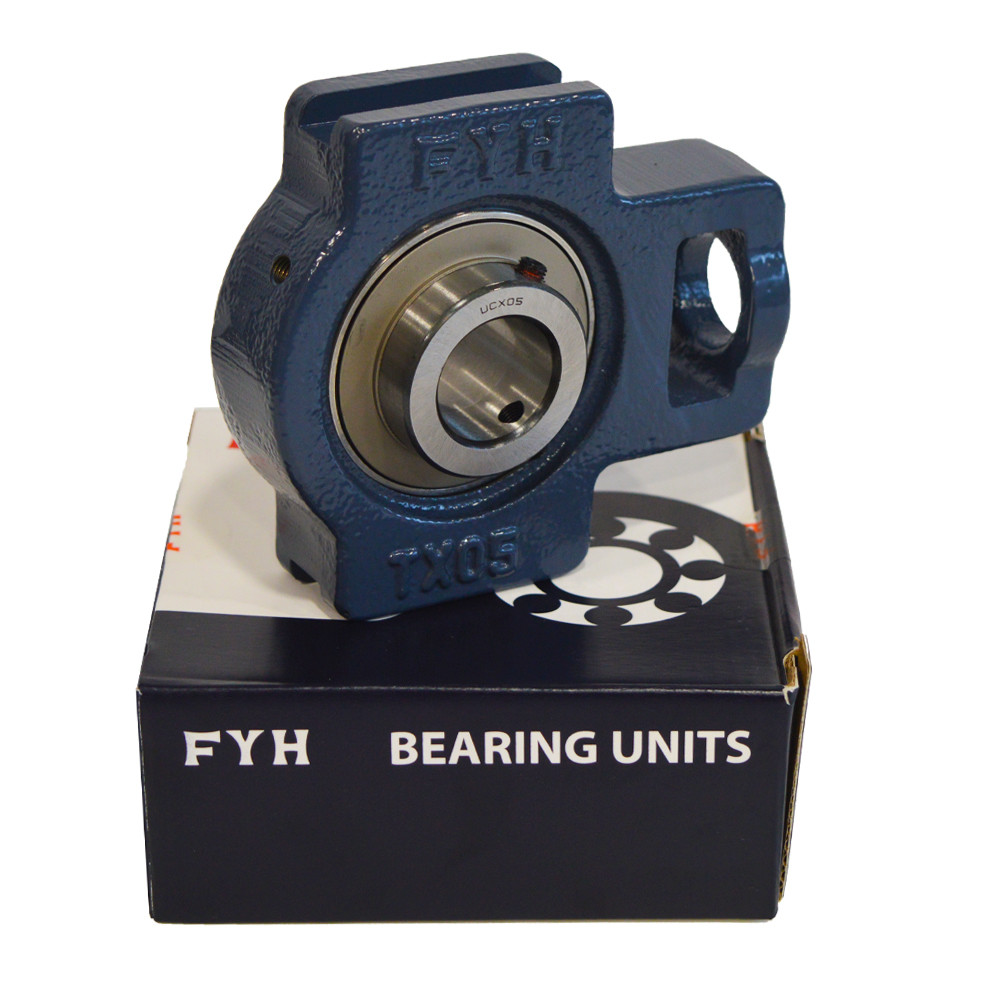

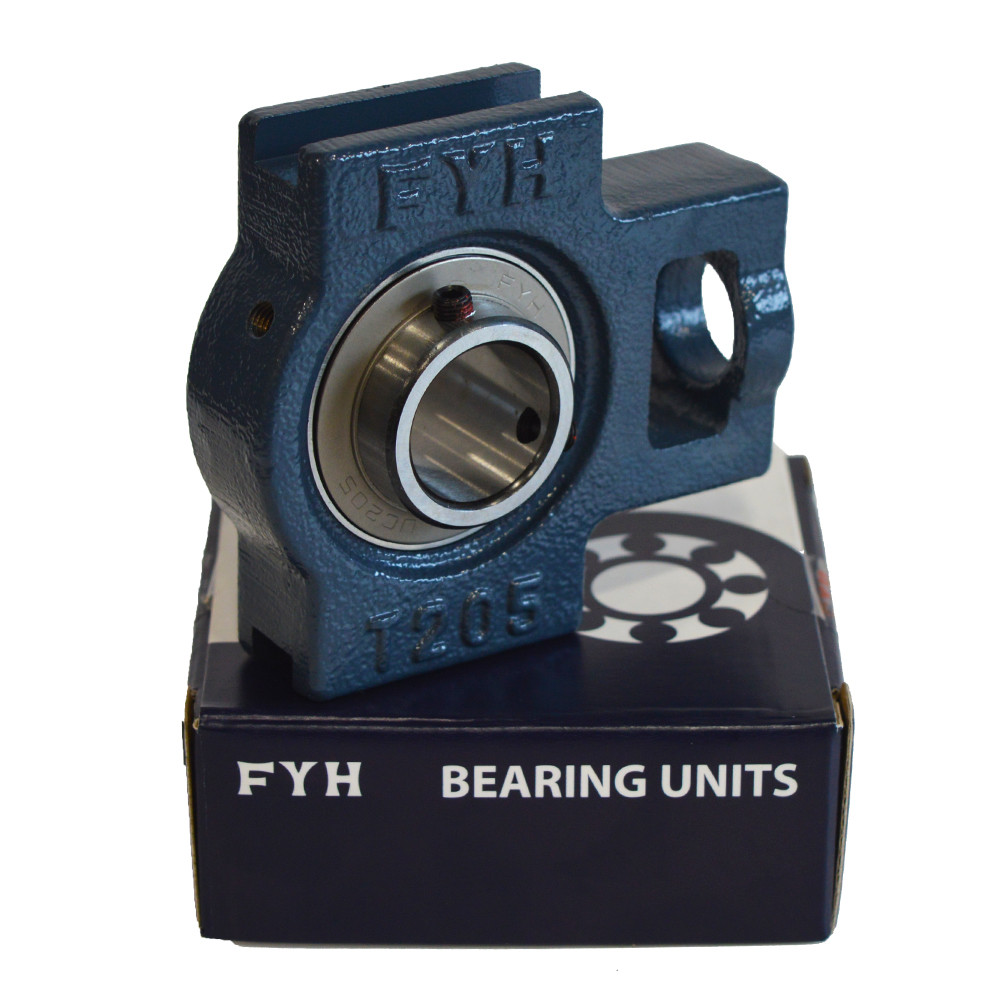

Introducing the FYH UCTX11-35 Take-Up Unit, engineered to deliver exceptional performance and reliability in various industrial applications. This meticulously crafted Take-Up Unit is designed by FYH, a renowned leader in bearing technology, ensuring unparalleled quality and durability. This robust medium duty unit comes fitted with a new, fully sealed, UCX11-35 Bearing Insert with a 2.3/16 Inch inside diameter.
Key Features
High-Quality Construction
Constructed with precision using premium-grade cast iron, the FYH UCTX11-35 boasts superior durability, capable of withstanding heavy loads and harsh operating conditions.
Efficient Take-Up Design
The take-up design allows for easy adjustment of the bearing position, facilitating optimal tensioning of belts or chains, ensuring smooth and efficient operation.
Versatile Application
Suitable for a wide range of industrial machinery and equipment, including conveyors, fans, agricultural machinery, and more, this unit offers versatility in application.
Replaceable Inserts
The Bearing Insert in the UCTX11-35 can be easily removed from the TX11 housing, allowing for future replacements as needed.Self-Aligning Ability
The convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCTX11-35 Take-Up Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load.
Product Information
Technical Data
Dynamic Load Rating (kN) :
52.4
Shaft Diameter (Inch) :
2.3/16 Inch
Static Load Rating (kN) :
36.2
Bearing Insert :
UCX11-35
Housing Length (mm) :
194mm
Housing Number :
TX11
Height (H) :
146mm
A1 (Machine Slot) :
22mm
