Description

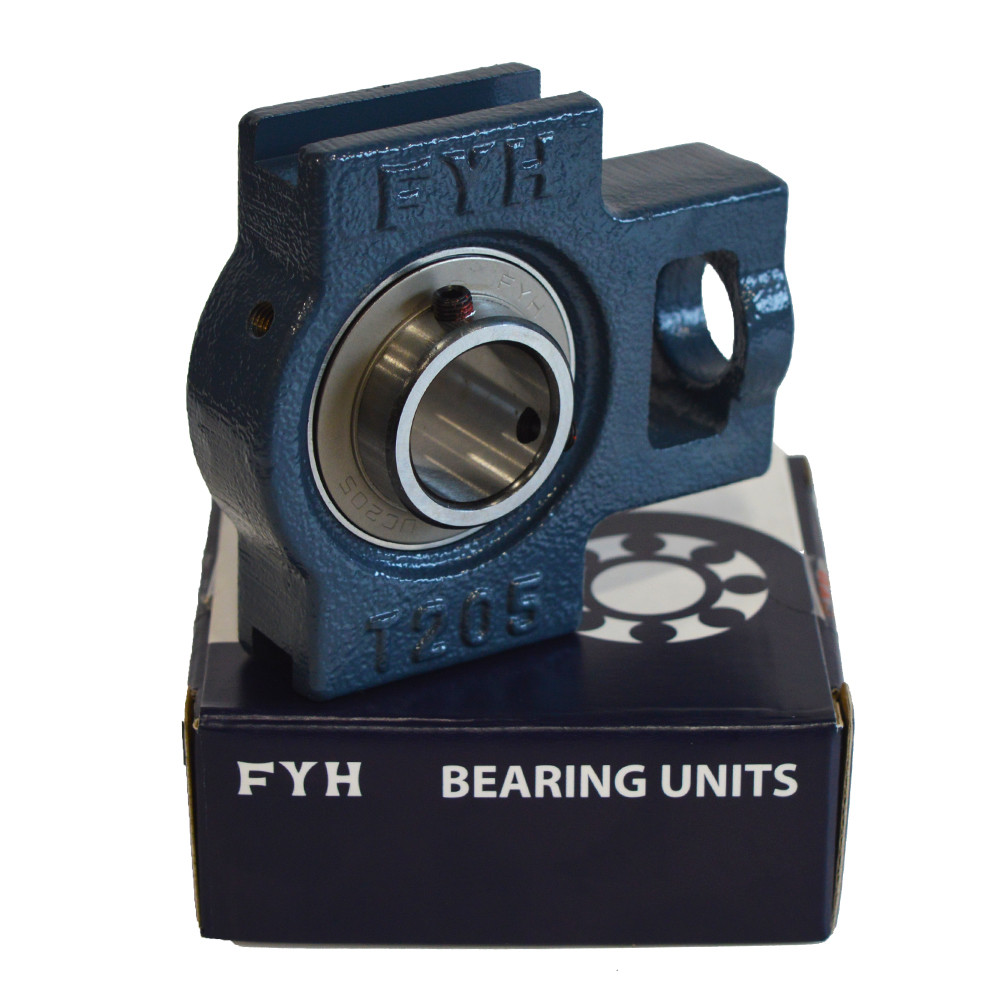

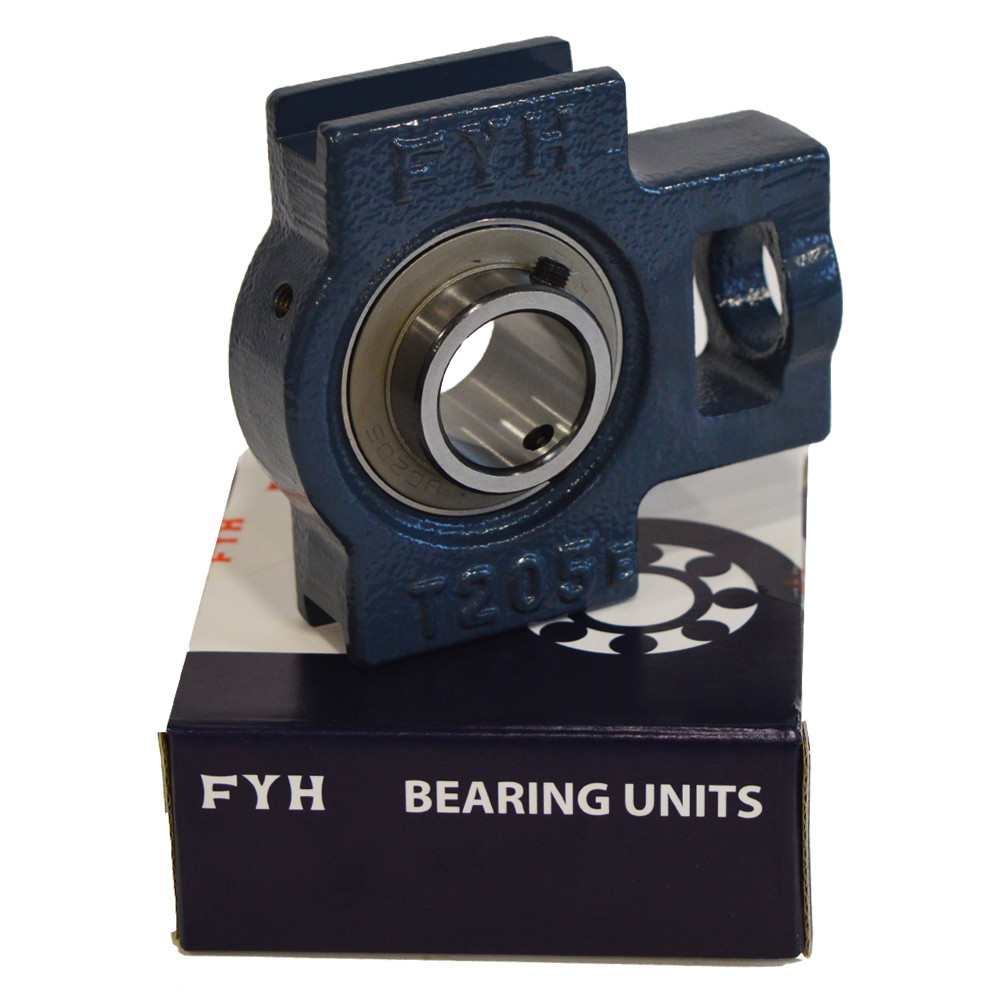

Introducing the FYH UCT217-52 Take-Up Unit, engineered to deliver exceptional performance and reliability in various industrial applications. This meticulously crafted Take-Up Unit is designed by FYH, a renowned leader in bearing technology, ensuring unparalleled quality and durability. This robust unit comes fitted with a new, fully sealed, UC217-52 Bearing Insert with a 3.1/4 Inch inside diameter.
Key Features
High-Quality Construction
Constructed with precision using premium-grade cast iron, the FYH UCT217-52 boasts superior durability, capable of withstanding heavy loads and harsh operating conditions.
Efficient Take-Up Design
The take-up design allows for easy adjustment of the bearing position, facilitating optimal tensioning of belts or chains, ensuring smooth and efficient operation.
Versatile Application
Suitable for a wide range of industrial machinery and equipment, including conveyors, fans, agricultural machinery, and more, this unit offers versatility in application.
Replaceable Inserts
The Bearing Insert in the UCT217-52 can be easily removed from the T217 housing, allowing for future replacements as needed.Self-Aligning Ability
The convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UCT217-52 Take-Up Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load.
Product Information
Technical Data
Dynamic Load Rating (kN) :
84
Shaft Diameter (Inch) :
3.1/4 Inch
Static Load Rating (kN) :
61.9
Bearing Insert :
UC217-52
Housing Length (mm) :
260mm
Housing Number :
T217
Height (H) :
198mm
A1 (Machine Slot) :
30mm
